本文利用开放R包 billboard 中的数据：
- 展示如何利用R以及ggplot2包进行数据分析并形成出版级别的可视化效果
- 展现2016年年度十大歌手及其代表作品
- 分析半个多世纪以来，年度Top100歌曲在某些特征上的时间变化
- 对比1960年与2015年的歌曲特征，揭示不同时代的受欢迎的音乐特点
文章包括分析代码、可视化结果以及相关的分析结论。
话不多说，直接进入正题
一、前期准备
#首先加载会使用到的包
library(tidyverse)
library(MetBrewer)
library(cowplot)
library(billboard)
library(extrafont)
library(cowplot)
library(showtext); showtext_auto()
library(ggcorrplot)
library(ggsci)
library(gghalves)
library(ggprism)
library(ggsignif)
library(car)
library(ggbump)
#从GoogleFonts导入字体
font_add_google("Satisfy", "satisfy")
font_add_google("Sacramento", "mento")
font_add_google("Lobster", "lobster")
font_add_google("Luckiest Guy", "luck")
font_add_google("Calligraffitti", "call")
font_add_google("Kalam", "kalam")
font_add_google("ZCOOL KuaiLe", "cool")#读入数据
head(spotify_track_data)## # A tibble: 6 x 23
## year artist_name artist_id explicit track_name track_id danceability energy
## <chr> <chr> <chr> <lgl> <chr> <chr> <dbl> <dbl>
## 1 1960 Percy Faith ~ 24DQLSng~ FALSE "The Them~ 2kKL5kk~ 0.466 0.389
## 2 1960 Jim Reeves 2Ev0e8GU~ FALSE "He'll Ha~ 7DH5dXV~ 0.554 0.186
## 3 1960 Johnny Prest~ 1B8n8vtE~ FALSE "Running ~ 60DbxCJ~ 0.758 0.462
## 4 1960 Mark Dinning 55Rf9Kfq~ FALSE "Teen Ang~ 7GvhZ0F~ 0.583 0.168
## 5 1960 Brenda Lee 4cPHsZM9~ FALSE "I'm Sorr~ 5VyBNCS~ 0.567 0.141
## 6 1960 Elvis Presley 43ZHCT0c~ FALSE "It's Now~ 2u8Lrq2~ 0.635 0.391
## # ... with 15 more variables: key <int>, loudness <dbl>, mode <int>,
## # speechiness <dbl>, acousticness <dbl>, instrumentalness <dbl>,
## # liveness <dbl>, valence <dbl>, tempo <dbl>, type <chr>, uri <chr>,
## # track_href <chr>, analysis_url <chr>, duration_ms <int>,
## # time_signature <int>head(wiki_hot_100s)## no title artist year
## 1 1 Theme from A Summer Place Percy Faith 1960
## 2 2 He'll Have to Go Jim Reeves 1960
## 3 3 Cathy's Clown The Everly Brothers 1960
## 4 4 Running Bear Johnny Preston 1960
## 5 5 Teen Angel Mark Dinning 1960
## 6 6 I'm Sorry Brenda Lee 1960从表格中可以看到wiki_hot_100s数据反映了从1960年到2016年的年度TOP100单曲，包含四个变量：
- 歌曲排行：no
- 歌曲名称：title
- 歌手名称：artist
- 歌曲年份：year
spotify_track_data数据则反映了其中大部分歌曲在多个特征维度上的评价情况
🙌前期工作完成🙌
下面尝试对这些数据进行分析，看看能不能得到什么有趣的结果
二、正式分析
1.歌手排名
经过大致的数据浏览，我决定选取2016年的数据，以歌曲上榜数量以及歌曲平均排行为指标，决出当年的十大歌手。
#数据清洗
singer <- wiki_hot_100s %>%
mutate(year = as.numeric(year),
no = as.numeric(no)) %>%
filter(year %in% 2016 & no <= 100) %>% #选出目标数据并过滤缺失数据
group_by(artist) %>%
mutate(best = min(no),
num = n(),
no_all = sum(no)) %>% #找到每个歌手的最佳作品和上榜歌曲总数
ungroup %>%
mutate(mean_no = no_all/num) %>%
arrange(desc(num), mean_no) %>%
group_by(artist) %>%
mutate(rank = 1:n()) %>%
filter(rank == 1) %>%
select(-c(year,rank,no)) %>%
ungroup() %>%
mutate(rank = row_number())
#选择前10歌手
top_10 <- singer[1:10,] %>%
mutate( angle = 360 - rank*(360 / (max(rank)+1)),
angle = ifelse(angle < -90, angle +180, angle),
mean_no = round(mean_no)) #计算平均歌曲排名#结果可视化
image = "https://raw.githubusercontent.com/wht9975/website/master/images/loveuself.png"
#子图1
top_10 %>%
ggplot()+
ggimage::geom_image(aes(x = 0, y = -1.5, image = image),size=0.19) +
geom_col(aes(x=rank, y=num, fill = artist),show.legend = F, width = 0.95)+
coord_polar(theta = 'x',direction = 1,start = -0.3)+
ylim(c(-1.5,5))+
xlim(c(0,11))+
theme_void()+
geom_text(aes(x = rank, y=as.numeric(num)+1,label = artist),
size=18, family = 'satisfy', fontface = 'bold', vjust = -0.1) +
geom_text(aes(x = rank, y=as.numeric(num)+1,label = paste(title,'-',best)),
size=11, family = 'call', fontface = 'bold', vjust = 1.7, color = '#716e77', hjust = 0.55) +
geom_text(aes(x = 0.25, y=2.8),label = 'The year of',
size=28, family = 'lobster', fontface = 'bold', hjust = 1)+
geom_text(data = data.frame(label=factor(c('2','0','1','6')),
y = c(12/4, 9/4, 6/4, 3/4)),
aes(x = c(0.5,0.5,0.45,0.5) , y = y , label = label),vjust = 1,hjust = 1,
size = 25, family = 'kalam', fontface = 'bold') +
geom_text(aes(x = rank, y=as.numeric(num)/2, label = rank, size =rank),
color = 'white',family = 'kalam',show.legend = F) +
scale_size_continuous(range = c(32,16)) +
scale_fill_manual(values = met.brewer('Hokusai1',n=10)) ->song_2016
#子图2
top_10 %>%
ggplot(aes(x = rank, y = 100 - mean_no, fill = artist))+
geom_col(aes(y=100),color = 'lightgrey',fill = 'white', lty = 'dashed', size = 0.8)+
geom_col(aes(color = artist),show.legend = F,size = 0.8)+
scale_fill_manual(values = met.brewer('Hokusai1',n=10))+
scale_color_manual(values = met.brewer('Hokusai1',n=10))+
geom_hline(yintercept = c(50,75),color = '#716e77',lty = 'dashed',size = 0.8)+
geom_text(aes(y = -4, label = artist),
size=14, family = 'satisfy', fontface = 'bold')+
theme_minimal()+
theme(panel.grid = element_blank(),
# axis.line.x = element_line(size = 2),
axis.title = element_blank(),
axis.text.x = element_blank(),
axis.text.y = element_text(family = 'kalam',size = 64, hjust = 0.5),
plot.margin = margin(8,2,1,2,unit = 'mm')) +
scale_x_continuous(expand = c(0,0))+
scale_y_continuous(breaks=c(0,50,75,100, 120), labels = c('',50,25,1, '')) -> song_col
#图片合并
ggdraw()+
draw_plot(song_2016, x = 0.025,y = 0.175,width = 0.95,height = 0.95)+
draw_plot(song_col, x = 0.125, y = 0.025,width = 0.75,height = 0.35)+
draw_plot_label(c("M","e","a","n"), x = rep((0.07),4), y = seq(0.35,0.15,length.out=4),
size = 96, family = 'kalam',hjust = 0.5)+
draw_plot_label(c("R","a","n","k"), x = rep((0.095),4), y = seq(0.32,0.15,length.out=4),
size = 84, family = 'kalam',hjust = 0.5) -> song_all
#ggsave("2016.png", song_all, width = 16, height = 9, units = 'in',bg = 'white')

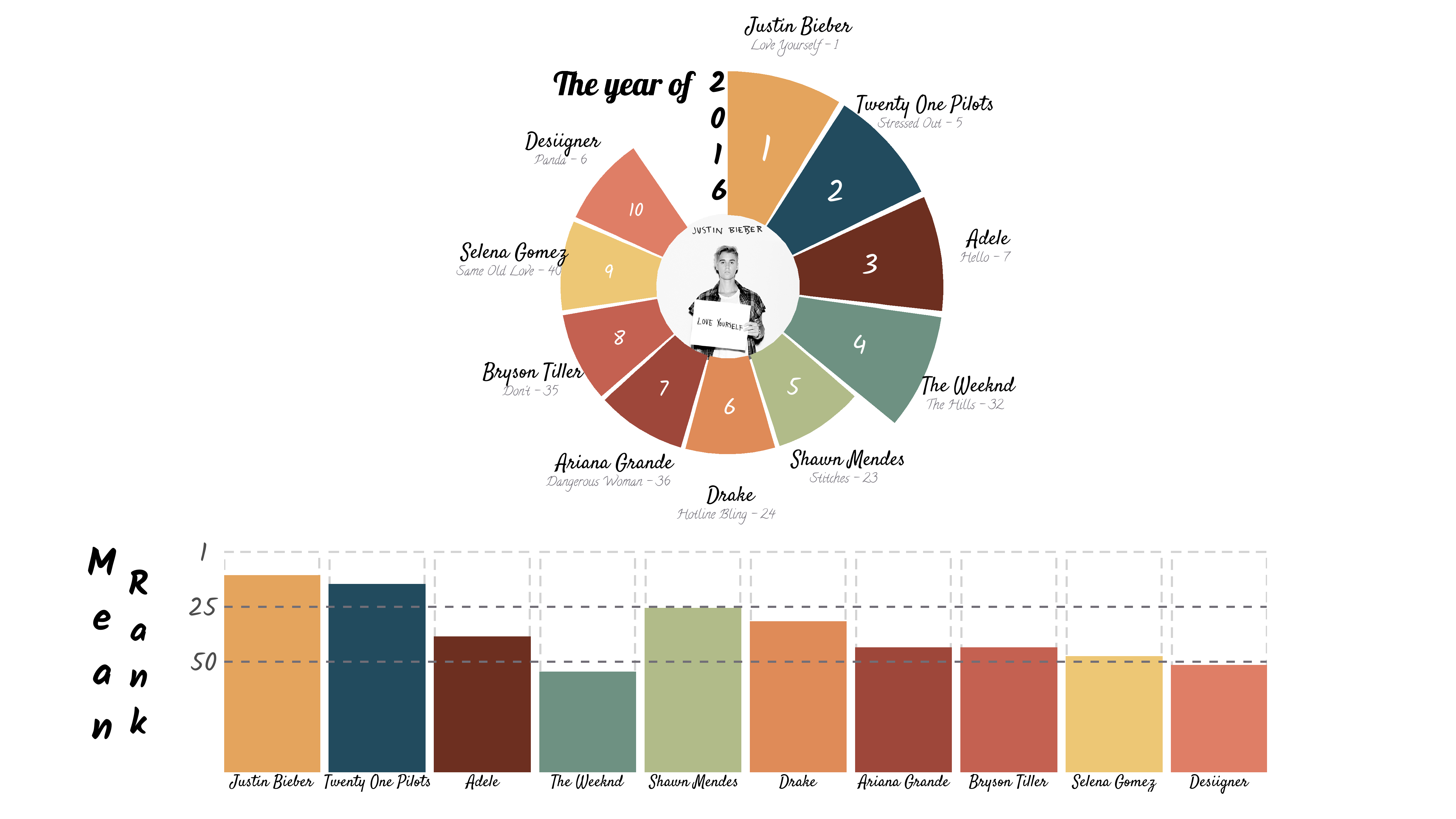

通过环形图可以看到Justin Bieber凭借其Love Yourself（总排名1）以及总共三首上榜歌曲荣登2016年度榜首。排名其后的是Twenty One Pilots、Adele以及The Weekend均有三首佳作上榜。之后的几名歌手均有两首歌曲进入Top100,根据他们的平均歌曲排名（下方柱状图）确定最终排名。
2.特征关联
本部分尝试分析Spotify在评定歌曲时依据的各项指标间的关系，并通过相关图展示最后结果
#数据清洗
feather <- spotify_track_data %>%
rename(artist=artist_name,
title = track_name) %>%
group_by(year) %>%
mutate(rank = 1:n()) %>%
ungroup
feather_all <- feather %>%
select(-c(year,artist,artist_id,track_href,title,track_id,key,type,uri,analysis_url,duration_ms,time_signature,explicit)) #去除无关数据
cor = round(cor(feather_all, method = 'pearson'),2) #对特征变量间进行两两相关分析
p.mat <- cor_pmat(feather_all) #计算相关显著性#数据可视化
ggcorrplot(cor, method = 'circle',hc.order = TRUE,
outline.color = "white",type = "lower",
lab = F, digits = 2,lab_size = 4, lab_col = 'black',
colors = c('#128b8e','#FFF5C3',"#fb3c3c"),
ggtheme = theme_minimal())+
guides(fill = guide_colorbar(direction = 'horizontal',
barwidth = unit(12,'cm'),
ticks = F)) +
theme(axis.title.x = element_blank(),
axis.title.y = element_blank(),
axis.text.x = element_text(size = 28, angle = 30,family = 'call', hjust = 0.6, vjust = 0.9),
axis.text.y = element_text(size = 28, family = 'call'),
axis.ticks.x = element_blank(),
axis.ticks.y = element_blank(),
plot.margin = margin(20,3,3,3,unit = 'mm'),
legend.title = element_blank(),
legend.text = element_text(size = 20,family = 'mento'),
legend.position = ('top')) -> corplot
#ggsave("feather_cor.png", corplot,width = 20, height = 20, units = 'cm',bg = 'white',dpi = 300)

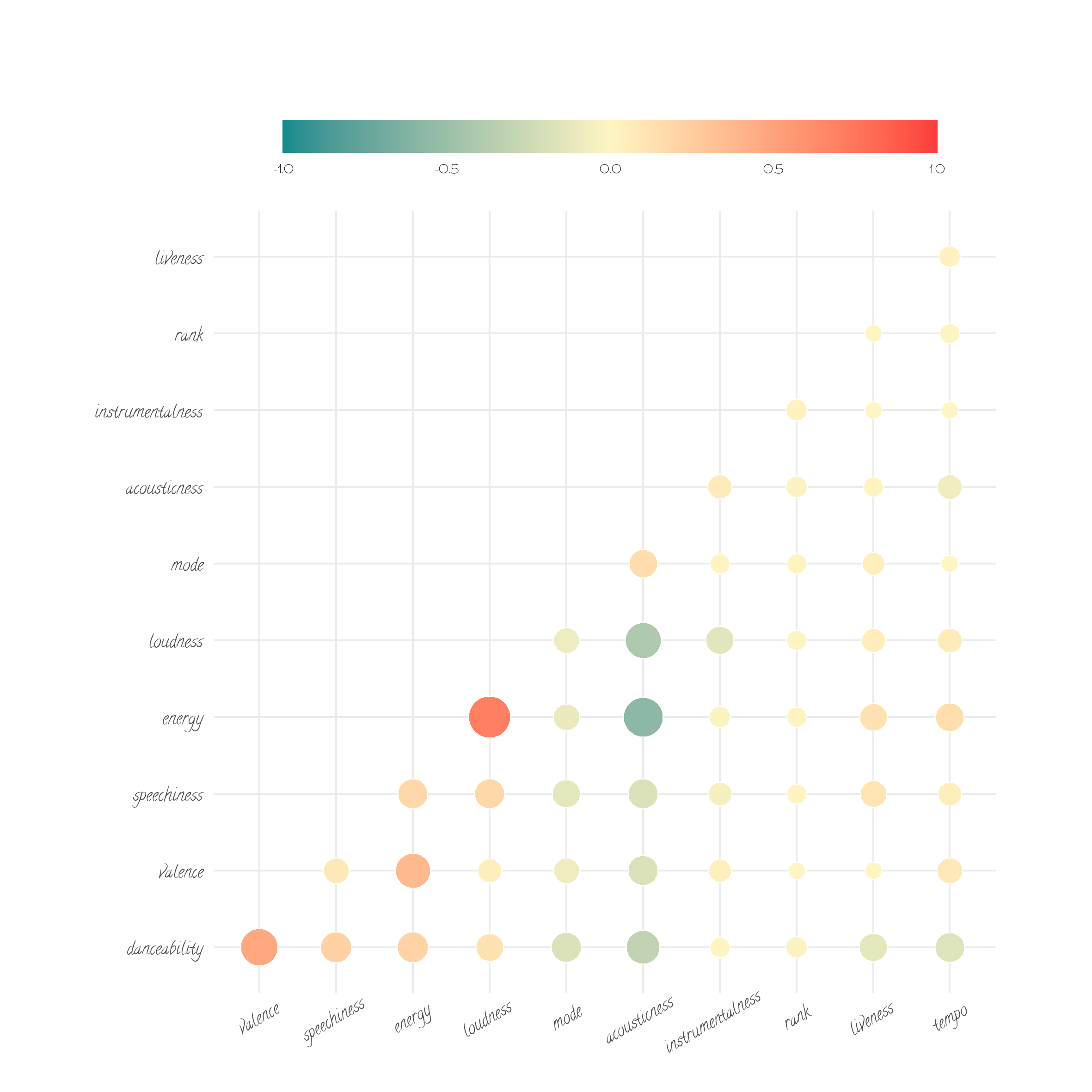

相关图中的变量各自代表的含义如下：
- danceability: 反应曲目适合跳舞的程度。0代表最不适合跳舞，1代表最适合跳舞。
- valence: 取值由0至1，用于描述曲目所传达的情绪效价（激动、高兴）。得分高者听起来更积极反之更消极（悲伤、痛苦）。
- speechiness: 用于检测曲目中是否存在类似说话的声音。歌曲越像语音（如脱口秀、有声读物、诗歌），值越接近1。高于0.66代表基本由话语组成的曲目。介于0.33和0.66之间可能同时包含音乐和语音，（说唱音乐）。低于0.33最有可能表示音乐和其他非语音曲目。
- energy: 从0到1代表感知到的强度和能量。
- loudness: 整体响度（以分贝为单位）。
- mode: 0,1取值，0代表小调，1代表大调。
- acousticness: 0到1，值越大越有可能是原声音乐。
- instrumentalness: 0到1，判断乐曲是否不包含人声，越接近1与可能是纯乐器演奏。
- rank: 该歌曲在当年的Top100排名。
- liveness: 通过歌曲中是否存在观众声音来判断歌曲是否是live版本。
- tempo: 曲目的总体节奏（每分钟节拍数，BPM）。
通过相关热图可以发现：
- 歌曲效价（valence）与舞动性（danceability）、能量值（energy）与响度（loudness）以及效价（valence）与能量值（energy）之间存在较高的正相关。说明这些变量共同反映了歌曲动感、活泼的一个方面
- 原声性（acousticness）与能量值（energy）、响度（loudness）以及舞动性（danceability）间均有较高的负相关，这可能是由于原声音乐都是比较柔和、安静的所以与一些动感的音乐元素匹配不佳。
- 而歌曲的排名与其他变量间并没有特别的相关。反映了听众的音乐品味是多元化的，并没有那种特征元素特别受到大家的欢迎
3.时代变化
第三部分选取四个特征（danceability、valence、energy以及speechiness）展示从1960年以来这些特征的时代变化
#数据清洗
feather_year <- feather %>%
select(year, title, artist, danceability, valence, energy, instrumentalness,rank, speechiness) %>%
group_by(year) %>%
summarise(mean_dance = mean(danceability),
mean_valence = mean(valence),
mean_energy = mean(energy),
mean_speechiness = mean(speechiness)) %>%
pivot_longer(c(mean_dance,mean_valence,mean_energy,mean_speechiness), names_to = 'index', values_to = 'value')
#数据可视化
feather_year %>%
ggplot(aes(x = year, y = value, group = index, color = index))+
geom_point(aes(fill = index, shape = index),size =2, alpha = 0.8)+
geom_smooth(aes(fill= index), #对数据进行线性拟合
span = 0.6, size = 0.8,
method = "loess",
level=0.95,
formula = 'y~x', alpha = 0.5) +
scale_fill_manual(values = c('#2E94B9','#F0B775','#3b9a9c','#D25565'),
labels = c('Danceability','Energy','Speechiness','Valence'))+
scale_color_manual(values = c('#2E94B9','#F0B775','#3b9a9c','#D25565'),
labels = c('Danceability','Energy','Speechiness','Valence'))+
scale_shape_manual(values = c(21,22,23,24),
labels = c('Danceability','Energy','Speechiness','Valence'))+
theme_minimal()+
labs(x = '', y = "Score", title = 'Feathers of each Year')+
theme(legend.title = element_blank(),
legend.text = element_text(size = 18, family = 'call'),
legend.position = 'top',
axis.text.x = element_text(size = 18, angle = 15,family = 'call',
hjust = 0.5, vjust = 0.9),
axis.text.y = element_text(size = 24, family = 'call'),
axis.title = element_text(size = 40, family = 'kalam'),
plot.title = element_text(size = 60, family = 'kalam', hjust = 0.5)) ->feather_plot
ggsave("feather.png",feather_plot, width = 12,height = 6, units = 'in', bg = 'white')

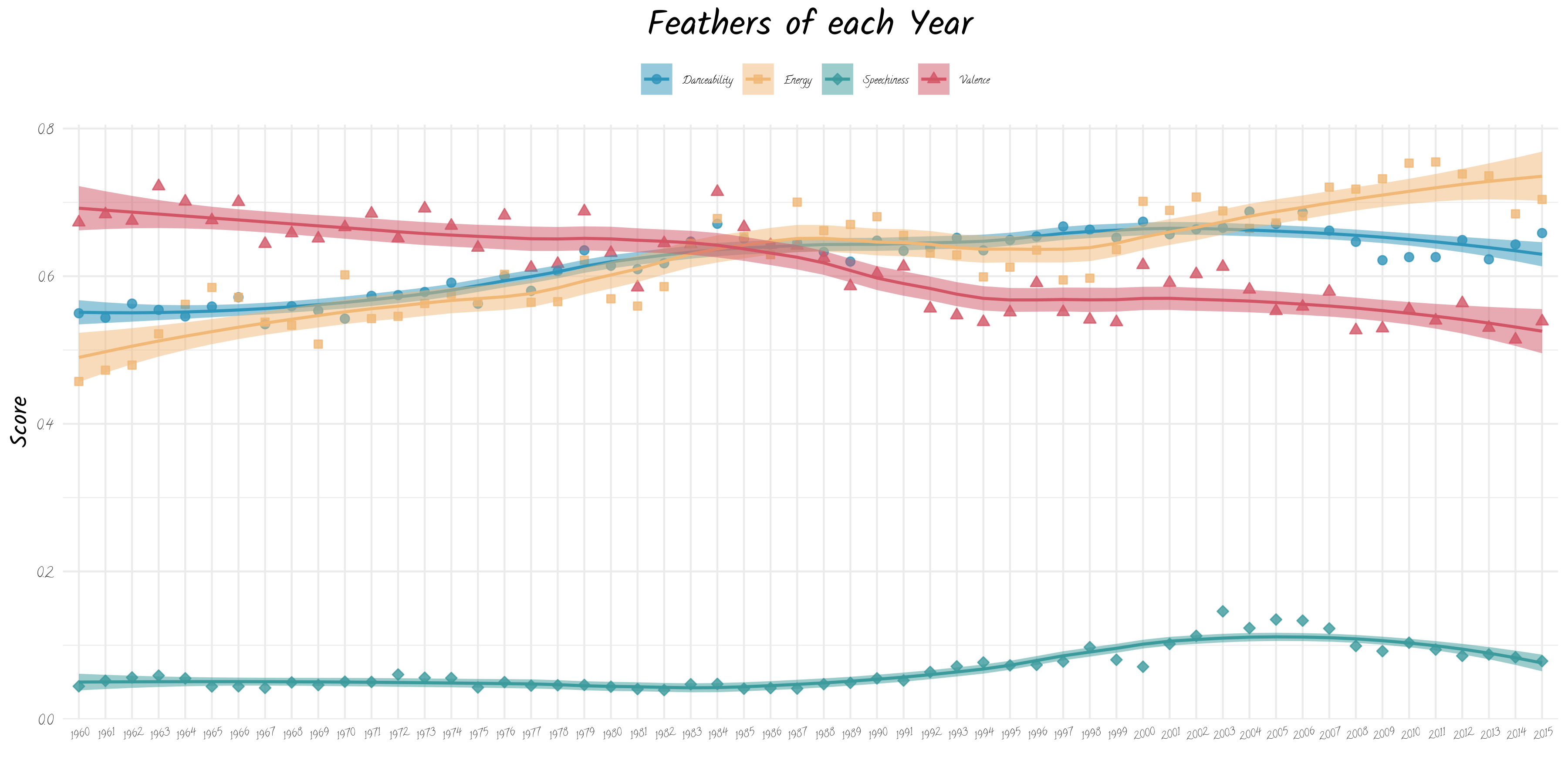

时序图上得出一些有意思的结论：
- 虽然danceability,energy和valence之间存在高相关，但top100歌曲的这三个特征的时代变化却略有差异，人们对于存在高能量值的歌曲越发喜爱，但对歌曲本身效价的选择却由大多为积极的音乐转变为中性的音乐，考虑到数据的平均属性，这可能反映了近年听众开始更多聆听带有悲伤情感的音乐。
- speechiness维度上的变化幅度虽然不大，但也能从一定程度上反映出从90年代开始，人们对带有说话性质的歌曲（可能以说唱歌曲为代表）的认可度有所提升。这与8、90年代说唱逐渐流行的情况也是吻合的

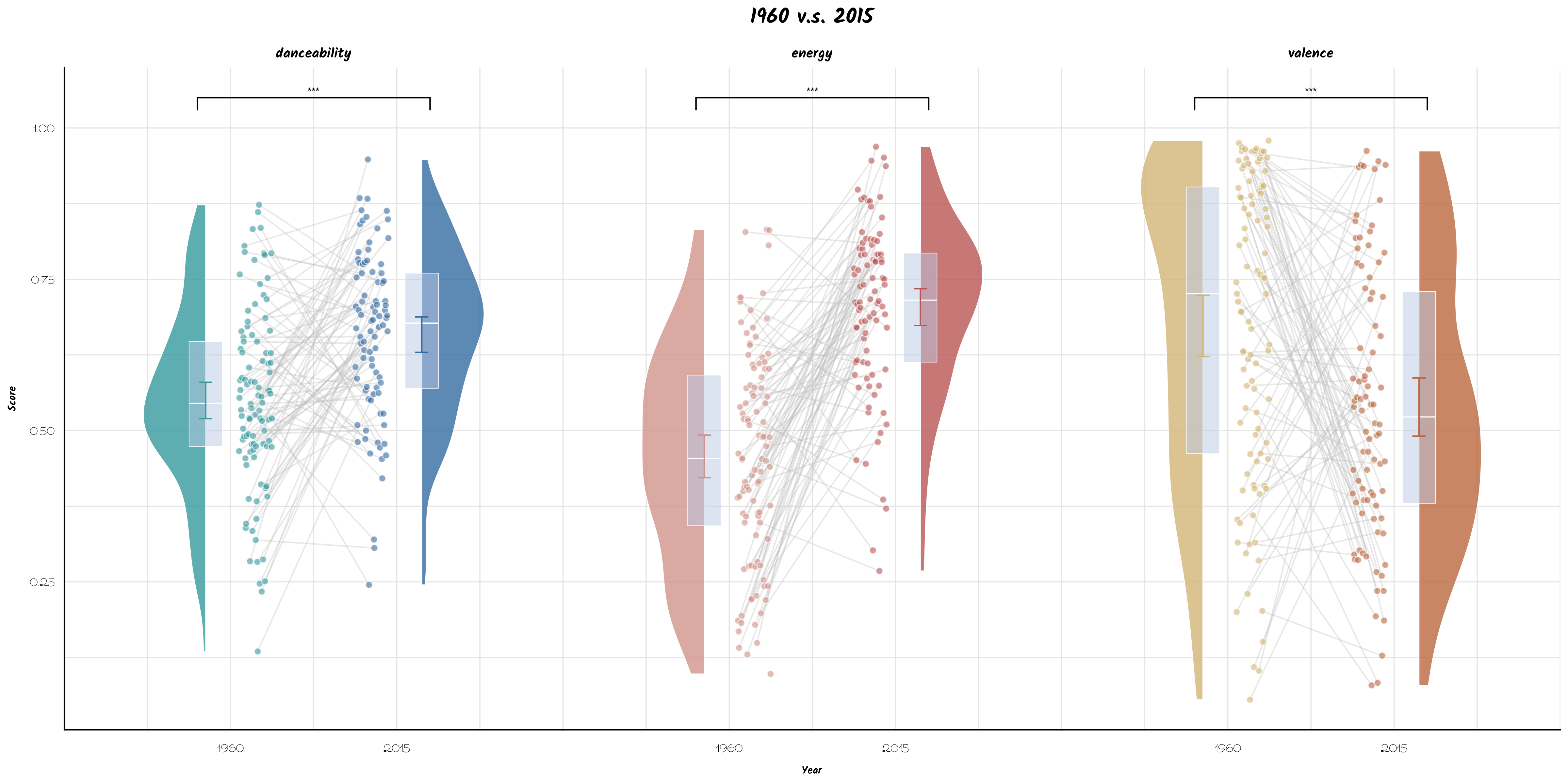

4.1960 V.S. 2015
由于第三部分的分析发现了歌曲特征在时代上的变化，本部分重点选取最早的1960年代的数据以及数据集中最新的2015年代的数在效价、舞动性以及能量值上进行直接的对比来验证之前的结论。
#数据清理
compare <- feather %>%
filter(year %in% c('1960','2015')) %>%
select(year, danceability, valence, energy) %>%
mutate(year = factor(year)) %>%
group_by(year) %>%
mutate(no = 1:n()) %>%
ungroup %>%
pivot_longer(c(danceability, valence, energy), names_to = 'index', values_to = 'value') %>%
mutate(dotx = case_when(year == '1960' ~ 1.15,
year == '2015' ~ 1.85),
vlinx = case_when(year == '1960' ~ 0.85,
year == '2015' ~ 2.15),
fill = case_when(year == '1960' & index == 'danceability' ~ '#35999D',
year == '1960' & index == 'energy' ~ '#D0938B',
year == '1960' & index == 'valence' ~ '#D2B577',
year == '2015' & index == 'danceability' ~ '#356CA2',
year == '2015' & index == 'energy' ~ '#BA5555',
year == '2015' & index == 'valence' ~ '#BB683F'),
value = as.numeric(value))#分别对三部分数据进行方差齐性检验并根据结果进行随后的差异t检验
#dance
data_dance <- compare[compare$fill == '#35999D'| compare$fill == '#356CA2',]
leveneTest(data_dance$value,factor(data_dance$fill),center=mean)## Levene's Test for Homogeneity of Variance (center = mean)
## Df F value Pr(>F)
## group 1 0.3261 0.5687
## 186#energy
data_energy <- compare[compare$fill == '#D0938B'| compare$fill == '#BA5555',]
leveneTest(data_energy$value,factor(data_energy$fill),center=mean)## Levene's Test for Homogeneity of Variance (center = mean)
## Df F value Pr(>F)
## group 1 6.6239 0.01084 *
## 186
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1#valence
data_valence <- compare[compare$fill == '#D2B577'| compare$fill == '#BB683F',]
leveneTest(data_valence$value,factor(data_valence$fill),center=mean)## Levene's Test for Homogeneity of Variance (center = mean)
## Df F value Pr(>F)
## group 1 3.1566 0.07725 .
## 186
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1t.test(value ~ fill,data_dance, paired = F, var.equal = F)##
## Welch Two Sample t-test
##
## data: value by fill
## t = 5.1498, df = 185.72, p-value = 6.615e-07
## alternative hypothesis: true difference in means between group #356CA2 and group #35999D is not equal to 0
## 95 percent confidence interval:
## 0.06701662 0.15024701
## sample estimates:
## mean in group #356CA2 mean in group #35999D
## 0.6584318 0.5498000t.test(value ~ fill,data_energy, paired = F, var.equal = T)##
## Two Sample t-test
##
## data: value by fill
## t = 10.39, df = 186, p-value < 2.2e-16
## alternative hypothesis: true difference in means between group #BA5555 and group #D0938B is not equal to 0
## 95 percent confidence interval:
## 0.1997677 0.2934115
## sample estimates:
## mean in group #BA5555 mean in group #D0938B
## 0.7039886 0.4573990t.test(value ~ fill,data_valence, paired = F, var.equal = F)##
## Welch Two Sample t-test
##
## data: value by fill
## t = -3.8158, df = 185.98, p-value = 0.0001847
## alternative hypothesis: true difference in means between group #BB683F and group #D2B577 is not equal to 0
## 95 percent confidence interval:
## -0.20338511 -0.06475407
## sample estimates:
## mean in group #BB683F mean in group #D2B577
## 0.5388534 0.6729230# 根据统计结果进行可视化展示
ggplot(compare, aes(y=value))+
geom_line(aes(x = dotx, group = no,fill = fill),
position = position_dodge(0.2),alpha = 0.35, color = 'grey')+
geom_point(aes(x = dotx, group = no,fill = fill),color = 'white',
position = position_dodge(0.2), shape = 21, size =2,alpha = 0.6)+
geom_half_violin(data = compare[compare$year == '1960',],
aes(x = vlinx,fill = fill),
side = 'l',size = 0.3, trim = T,alpha = 0.8,color = 'white')+
geom_half_violin(data = compare[compare$year == '2015',],
aes(x = vlinx,fill = fill),side = 'r',
size = 0.3, trim = T,alpha = 0.8,color = 'white')+
geom_boxplot(aes(x = vlinx, group = year), color = 'white', fill = '#B9C8E3',
width = 0.2, size = 0.2, outlier.shape = NA,alpha = 0.5)+
stat_summary(aes(x = vlinx, color = fill), fun.data = "mean_cl_normal",
fun.args = list(conf.int = .95), geom = 'errorbar',
width = 0.08,size = 0.5)+
geom_signif(data = data.frame(index = c("danceability","energy",'valence')),
aes(annotations=rep("***", 3),
y_position=rep(1.05, 3), xmin=rep(0.8, 3), xmax=rep(2.2, 3)),
tip_length=0.02, manual = T,textsize = 8,vjust = 0.5) +
facet_grid(~index)+
scale_fill_identity()+
scale_color_identity()+
theme_prism(base_line_size =0.5)+
scale_x_continuous(expand = c(0,0),breaks = c(1,2),
labels = c("1960", "2015"),limits = c(0,3))+
labs(x = 'Year', y= 'Score', title = '1960 v.s. 2015')+
theme(plot.margin = margin(2,2,2,2,unit = 'mm'),
panel.grid.minor = element_line(size = 0.4,color = "#e5e5e5"),
panel.grid.major = element_line(size = 0.4,color = "#e5e5e5"),
panel.spacing = unit(0,"lines"),
axis.ticks = element_blank(),
plot.title = element_text(family = 'kalam', size =48),
axis.title = element_text(family = 'kalam', size =24),
axis.text = element_text(family = 'mento', size =24),
strip.text = element_text(family = 'kalam', size =32,vjust = 1)) -> compare_plot
ggsave('wind&rain.png',compare_plot,width=16,height = 8)
结果反应1960与2015间Top100歌曲在效价、能量值与舞动性均存在统计学意义上的显著性差异，总体变化趋势与第三部分的结果一致。
👋👋 以上就是本文的全部内容了，如果有什么建议欢迎联系我📱💌
